🖥️ Purpose-Built for Mini-ITX in Your Rack
Mount a Mini-ITX motherboard properly in your 10-inch mini rack. This 2U shelf is engineered specifically for Mini-ITX builds — with dedicated cutouts for fans, PCIe cards, I/O access, and cable management.
⚙️ Designed Features

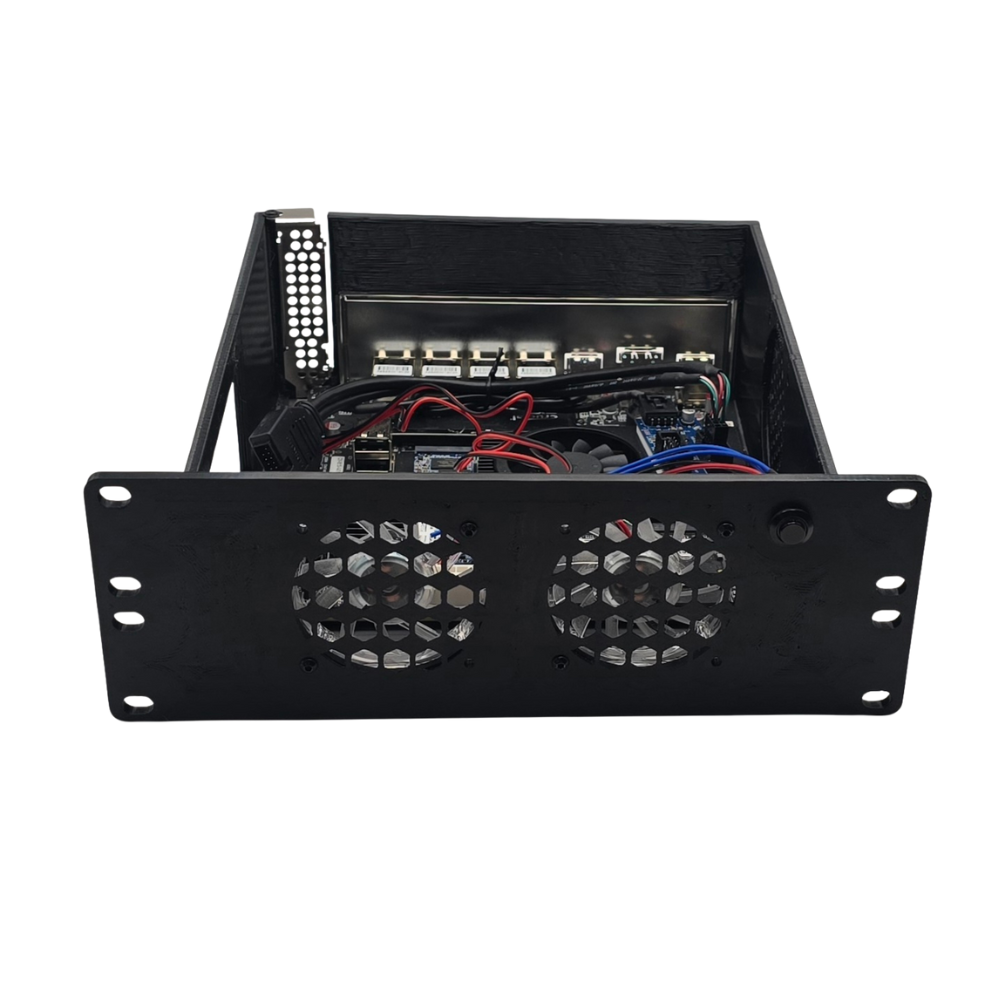

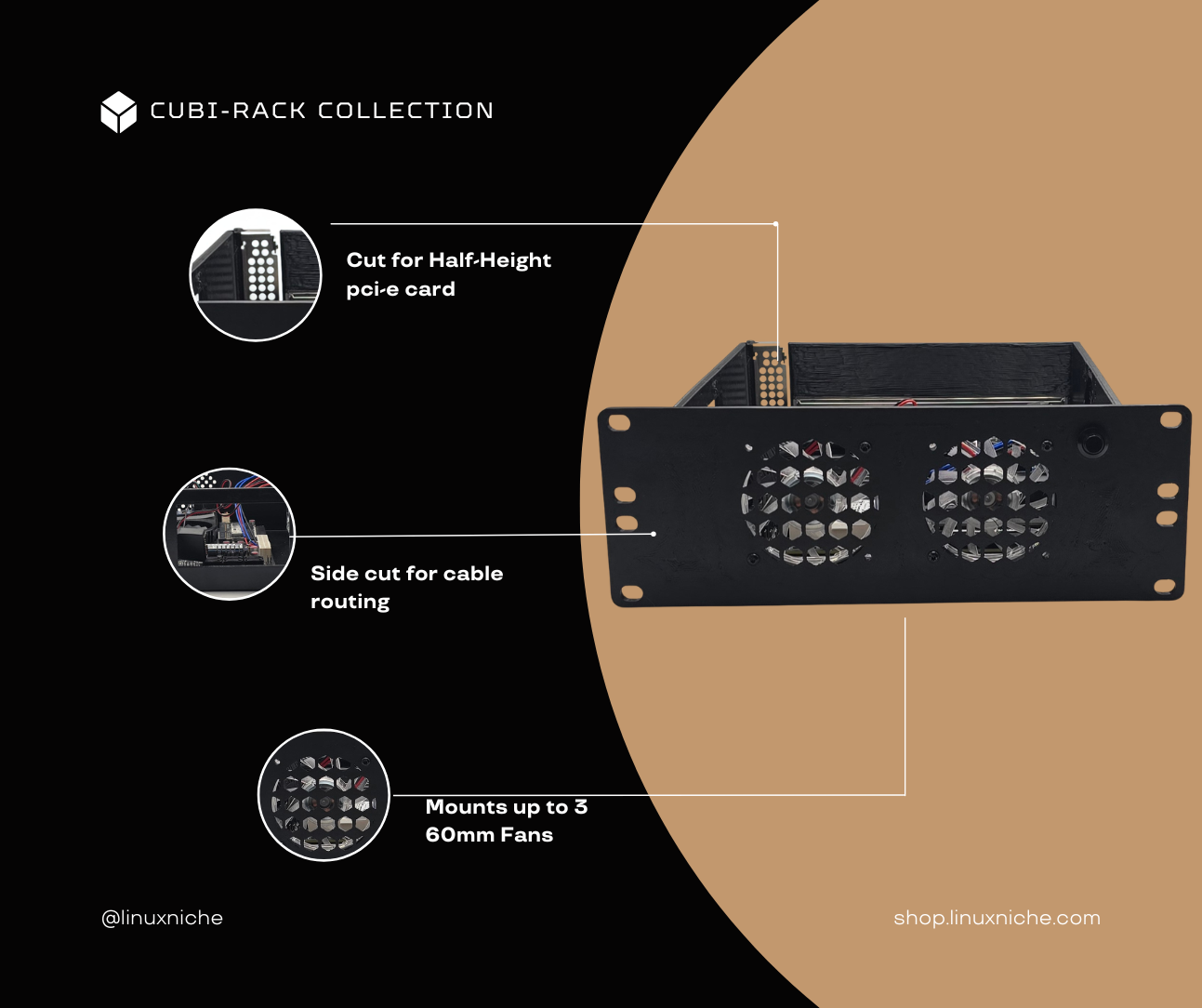

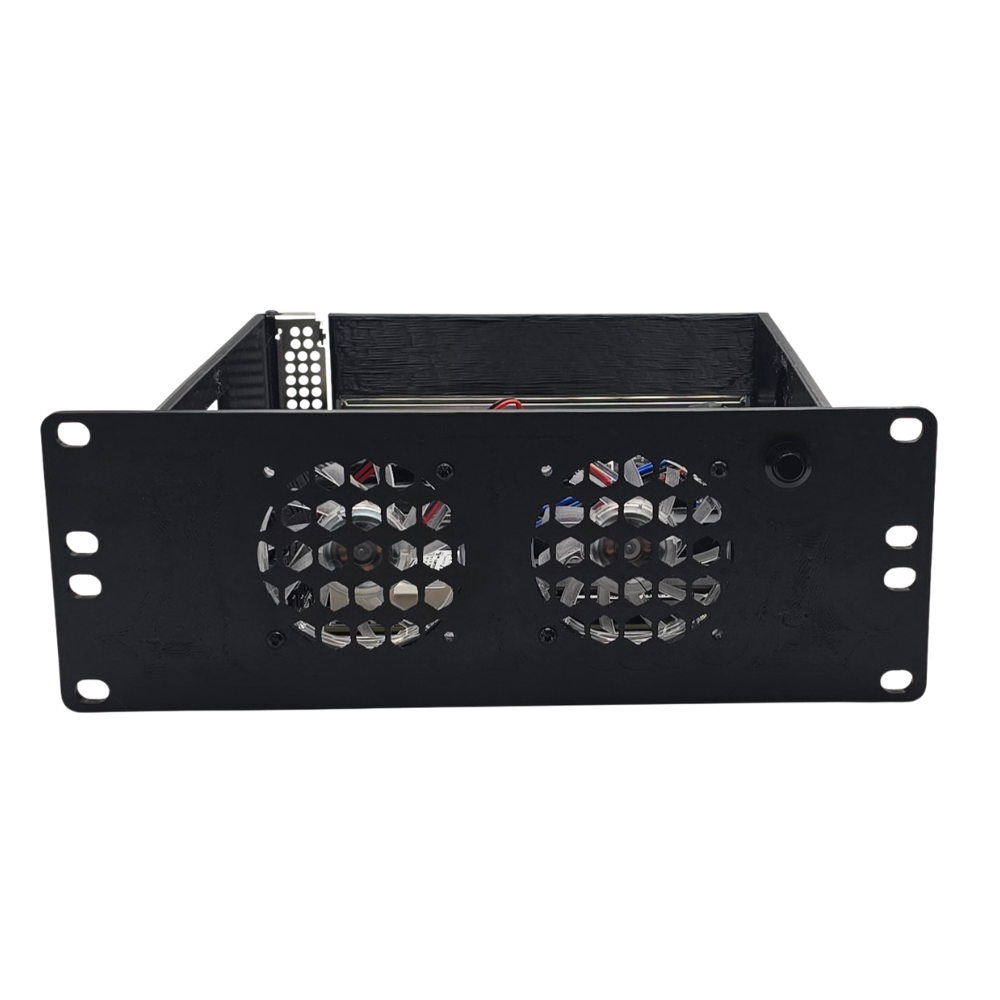

- ✅ 3x 60mm fan cutouts for active cooling
- ✅ Half-height PCIe slot for NICs, capture cards, or GPUs
- ✅ 12mm push-button cutout for front power/reset

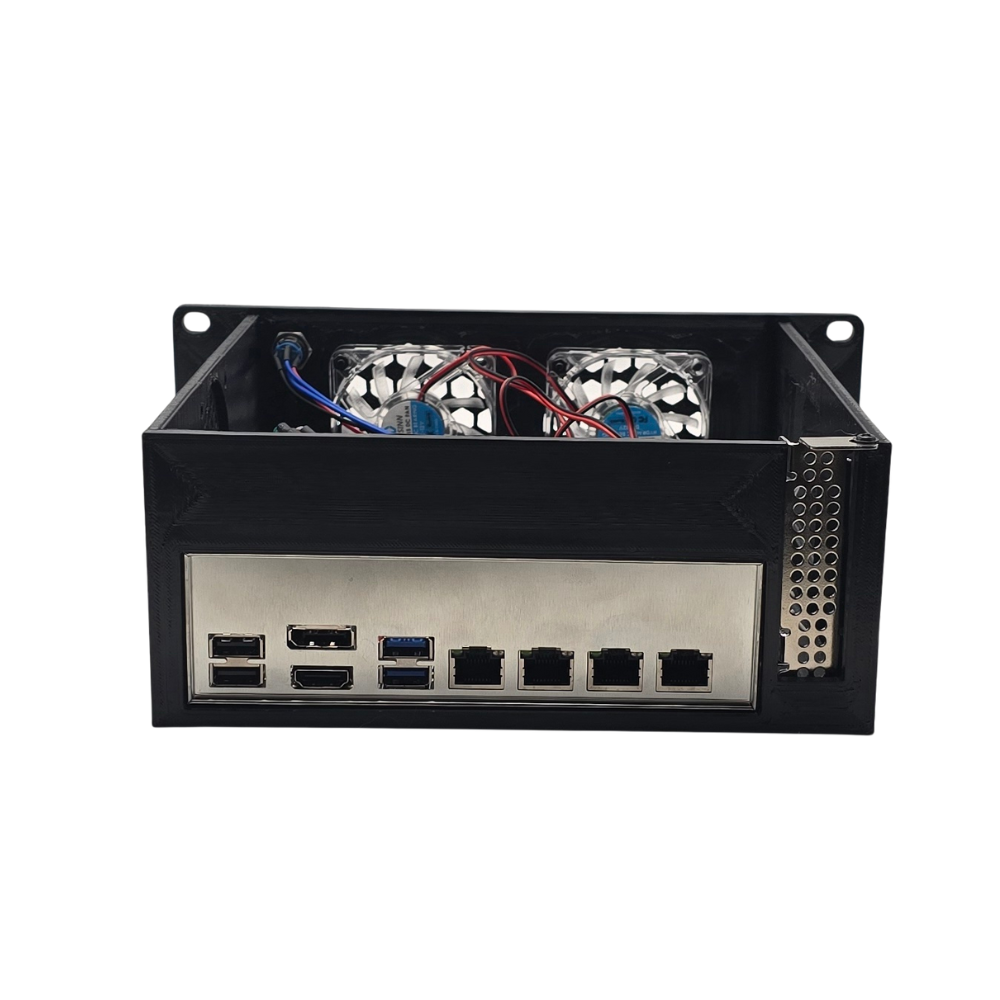

- ✅ Rear faceplate slot for I/O shield access

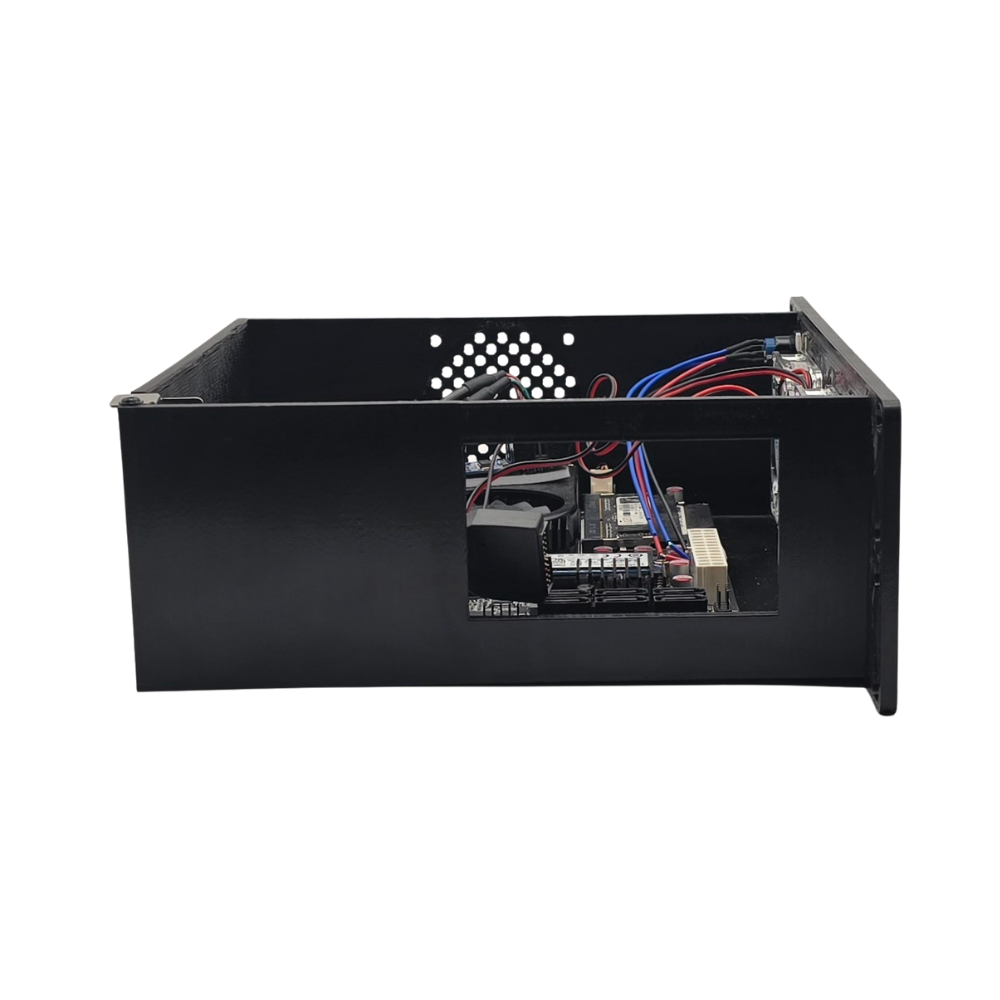

- ✅ Side cable channel for clean routing
🔥 Built for Continuous Operation
- ✅ Heat-resistant PETG construction
- ✅ 3 lb weight capacity with expansion cards
- ✅ Open design for unrestricted airflow
- ✅ Secure rack-mount locking points
📦 What's Included
- • 1x 2U Mini-ITX Motherboard Shelf
- • Mounting hardware
📐 Specifications
| Form Factor | 2U (3.5" / 88.9mm) |
| Material | Durable PETG (heat resistant) |
| Compatible | Cubi-Rack 10-inch, standard 10" racks |
| Mounting | M6 cage nuts / rack studs / Rack Screws |
| Fan Support | 3x 60mm cutouts |
| PCIe | Half-height card cutout |
| Button | 12mm push button (front) |
| Weight Capacity | 3 lbs / 1.36 kg |
| Board Size | Mini-ITX (170 × 170 mm) |
🎯 Ideal For
- • Proxmox homelab compute nodes
- • Home Assistant / Smart Home servers
- • Plex / Jellyfin media servers
- • 10GbE routers with PCIe NICs

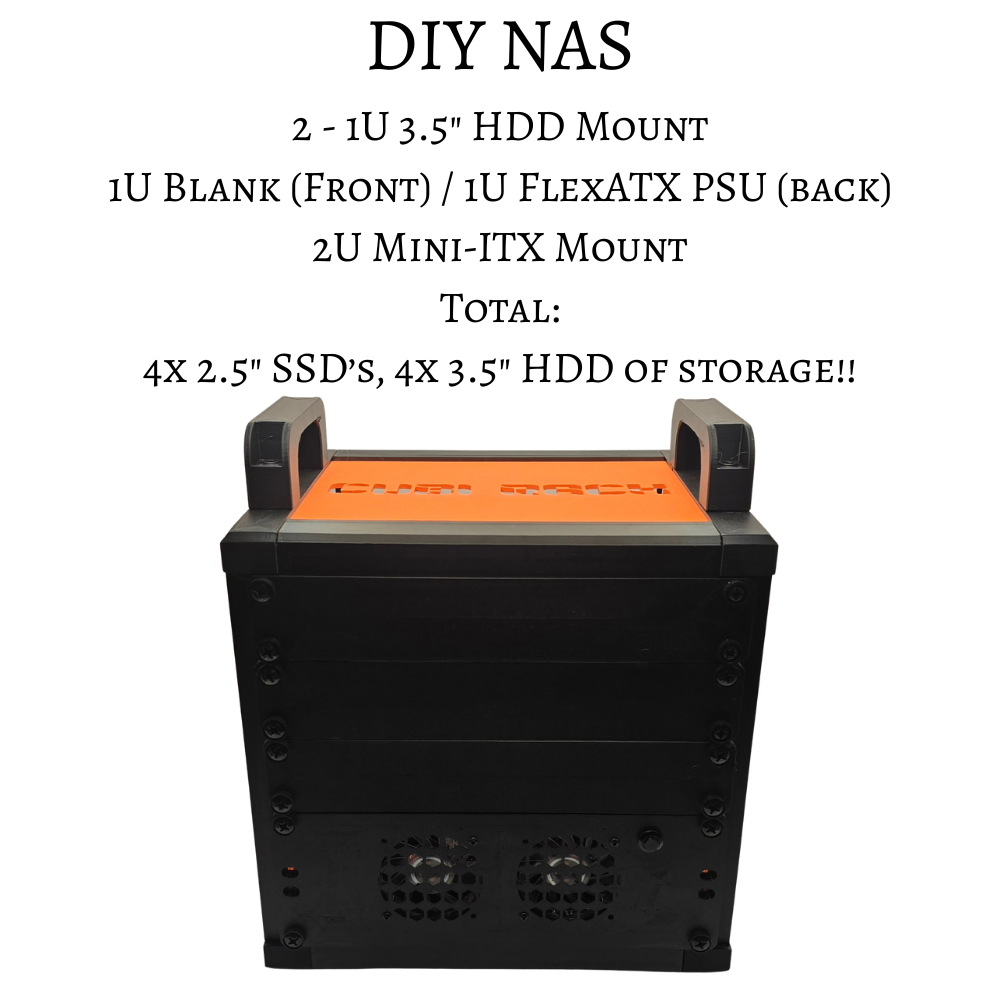

- • Compact NAS with M.2 storage
Share
This was a great solution to mount my Mini-ITX in my Geeekpi 12U rack. I also got the double 3.5 drive bay that was bundled with it, although, I will probably not use it, at least not right away.
I would have liked to have seen the option to bundle the Flex PSU shelf instead, as it would accommodate 4 drives and the PSU in 1U.
Having said that, I cannot complain about this product at all. It is well thought out and does the job it is meant to do, and it looks good.
I really do love this and it is amazing but I HIGHLY recommend you add one USB 2.0 and one USB-C ports to the front of the device cause I feel like having these frontal connections can result in quick easy simple and hassle free service but otherwise I am very impressed.
Just works and seems durable
These things are great! In a field with not so many options for a 10mm case; this works great for cluster computing builds. I liked it so much that I ordered 6! Thanks.
